Compact
ODVF350
The smallest ODVF option for balconies and compact patio features. Its fog outlet is located on the inner side of the outer ring.
- Tank
- 4 L
- Package
- 50 x 50 x 30 cm
ODVF Round Outdoor Vapor Fireplace
Three circular mist-fire sizes for outdoor feature projects.
ODVF350, ODVF550 and ODVF750 combine an SS304 circular body, illuminated water mist, automatic filling and draining, and four control methods. Select the diameter by the space, required visual scale and service plan.
Direct Answer
What is the ODVF round outdoor vapor fireplace?
ODVF is SEFIRE's circular outdoor decorative fireplace family. It creates a multidirectional flame-like effect from water mist and ring lighting without burning ethanol, gas or wood. All three catalog models use a 170 mm-high SS304 body, automatic filling and draining, quiet operation below 30 dB, and remote, local, app or RS485 control.
The three sizes are not simply scaled copies. Tank capacity, LED-ring layout, fog-outlet position, gross weight and packing size change with the model. These details should be compared before a fire table, terrace feature or courtyard centerpiece is fabricated.
Model Comparison
ODVF350, ODVF550 and ODVF750.
| Model | Diameter x height | Water tank | LED layout | Gross weight | Catalog application |
|---|---|---|---|---|---|
| ODVF350 | 350 x 170 mm 13.8 x 6.7 in | 4 L | 1 ring + 4 center LEDs | 25 kg | Balcony / small patio |
| ODVF550 | 550 x 170 mm 21.7 x 6.7 in | 12 L | 2 rings + 4 center LEDs | 35 kg | Garden / terrace |
| ODVF750 | 750 x 170 mm 29.5 x 6.7 in | 23 L | 3 rings + flat center | 45 kg | Hotel / large courtyard |
Shared catalog reference: 10-15 hour runtime, below 30 dB, automatic fill and drain, SS304 body, and brushed silver or black PVD top-panel options.
Mid-size
ODVF550
A larger two-ring visual arrangement for terraces, gardens and hospitality seating zones. The fog outlet remains inside the outer ring.
- Tank
- 12 L
- Package
- 70 x 70 x 30 cm

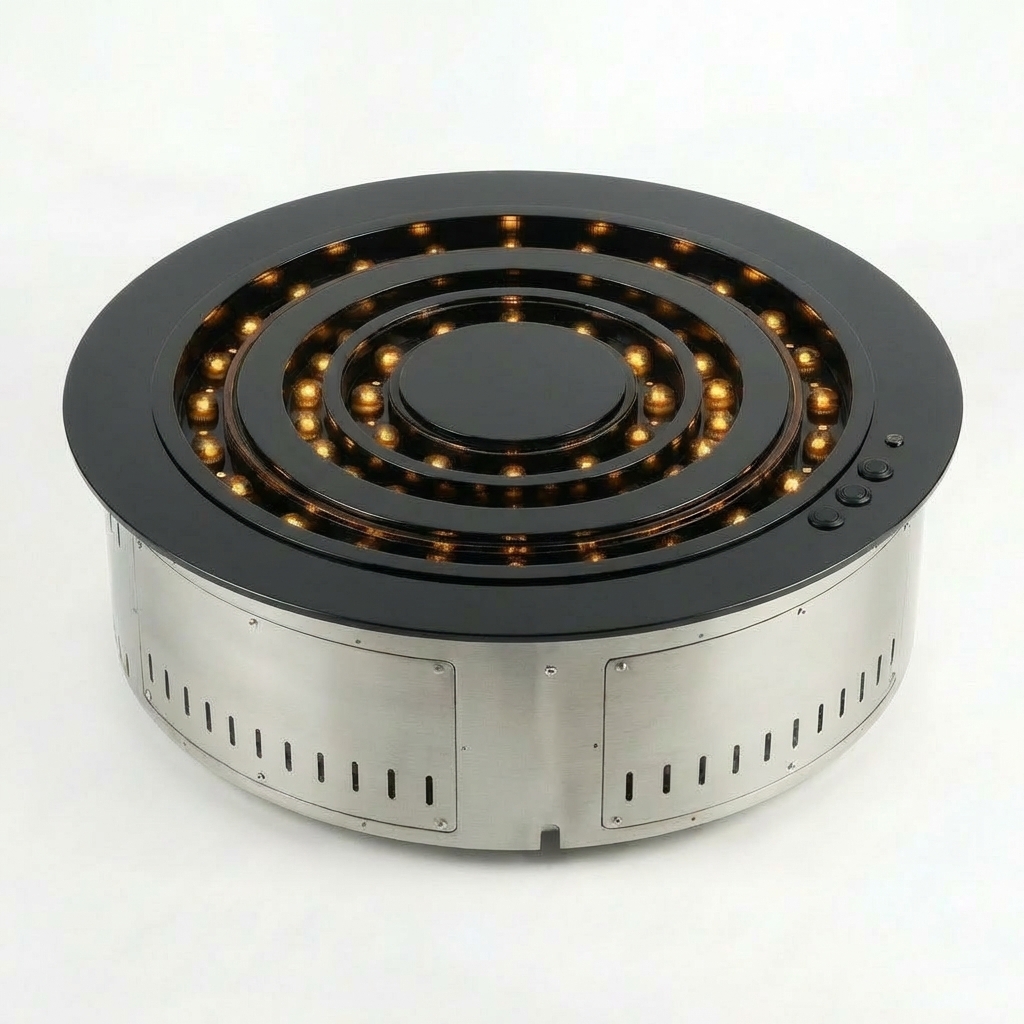

Large
ODVF750
The largest catalog model for hotels and large courtyards. It uses three lighting rings, with the fog outlet positioned between the first and second rings.
- Tank
- 23 L
- Package
- 90 x 90 x 30 cm
Shared Functions
One outdoor platform with four control paths.
Water-mist flame effect
Atomized water and ring lighting create a circular decorative flame shape without fuel combustion or combustion exhaust at the unit.
Automatic fill and drain
All three catalog models include automatic water supply and drainage functions for project integration.
Remote, button, app and RS485
Operate locally by push button, by handheld remote, through the Wi-Fi app, or integrate controls through RS485.
Adjustable visual effect
The catalog lists free-level adjustment and DIY flame-shape control, allowing the effect to be adapted to the setting.
Quiet or atmospheric sound
Mechanical operating noise is listed below 30 dB, while a wood-crackling sound effect can add audible ambience.
Two finish directions
Choose a brushed stainless silver top or a black PVD top panel. Confirm the selected finish on the order and approved drawing.
Outdoor Project Planning
Outdoor use still requires a coordinated installation.
The ODVF catalog defines this family for outdoor use and lists waterproof construction. For a real project, the product, electrical connection, water connection, drain, supporting table and service opening must still be coordinated as one assembly.
- Provide the exact location, overhead protection and expected rain or wind exposure.
- Keep the circular mist outlet clear of furniture, planting and strong crosswinds.
- Coordinate automatic water supply, drainage and service access before fabricating the table or surround.
- Confirm freezing, salt-air, dust and maintenance conditions for the destination.
- Request the applicable IP or compliance document if the approving party requires a numerical rating.
Important: "outdoor waterproof" is the catalog description. A numerical IP code is not printed in the catalog supplied for this update, so the page does not invent one.
Packing & Procurement
Catalog planning data for quotations.
| Model | Gross weight | Wooden-crate package | MOQ | Catalog lead time |
|---|---|---|---|---|
| ODVF350 | 25 kg | 50 x 50 x 30 cm | 1 pc | 40 days |
| ODVF550 | 35 kg | 70 x 70 x 30 cm | 1 pc | 40 days |
| ODVF750 | 45 kg | 90 x 90 x 30 cm | 1 pc | 40 days |
The catalog lists FOB Ningbo terms and TUV, CE, RoHS, FCC, IEC and EMC documentation. Commercial terms, document scope and applicability must be reconfirmed for the exact quotation and destination.
Technical FAQ
Questions before specifying ODVF.
Does ODVF use real fire?
No. Water mist and LED lighting create the flame-like visual effect without burning fuel.
Which model is best for a terrace?
The catalog positions ODVF350 for balconies or small patios and ODVF550 for gardens or terraces. Final selection depends on scale and service access.
How is it controlled?
All three models list remote, push-button, Wi-Fi app and RS485 control.
How long does it run?
The 2026 catalog lists a 10-15 hour runtime for each model. Confirm operating conditions for the selected configuration.
Can it be ordered in black?
Yes. The catalog shows brushed silver and black PVD top-panel options.
What IP rating does it have?
The catalog states outdoor waterproof construction but does not print a numerical IP code. Request the applicable document when a rating is required.
